McCormick-Deering Super W-4

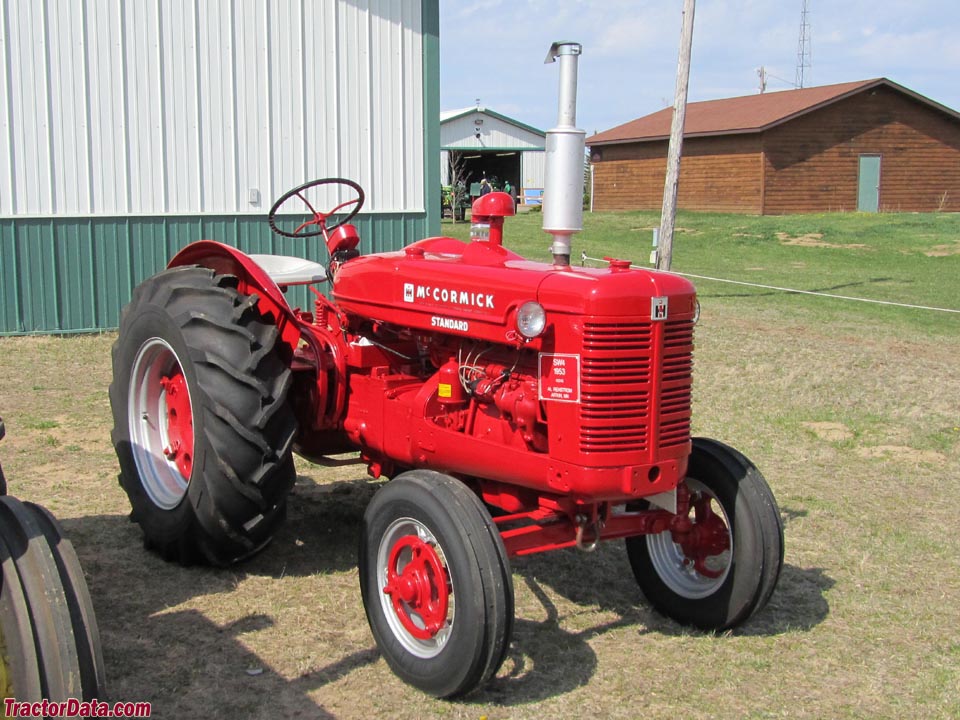

McCormick-Deering Super W-4 tractor photo
1953 - 1954
Standard-tread tractor






Production:

Manufacturer:International Harvester
Total built:28,784
Original price (USD):$2,100 (1954)


McCormick-Deering Super W-4 Engine:

   International Harvester 2.7L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:17 gal [64.3 L]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:89.25 inches [226 cm]
Weight:3875 lbs [1757 kg]
Front tire:5.50-16
Rear tire:11-38
full dimensions and tires ...


Super W-4 Serial Numbers:

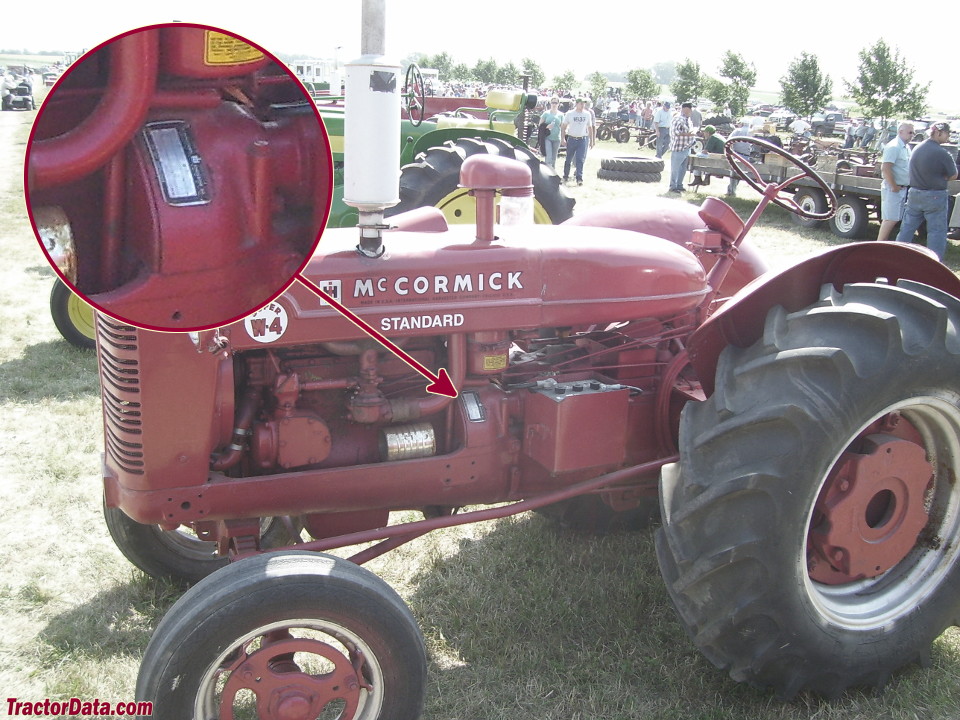

Location:Left side of tractor, on clutch housing

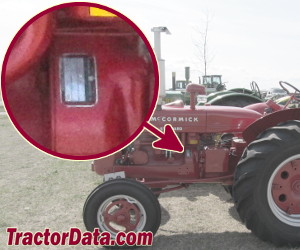

photo of Super W-4 serial number

1953: 501
1954: 2668

how to read serial numbers...



Links:

Farmall-H.com: detailed information on the H


McCormick-Deering Super W-4 Power:

Drawbar (claimed):23 hp [17.2 kW]
PTO (claimed):30 hp [22.4 kW]
Drawbar (tested):29.31 hp [21.9 kW]
Belt (tested):33.85 hp [25.2 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical disc
Cab:Open operator station.


Belt Pulley:

Diameter:9.75 inches [24 cm]
Width:7.5 inches [19 cm]
RPM:2601
Speed:1019 ft/min [310.59 meters/min]


Battery:

Number:1
Volts:6
