International Harvester 475 Transmission


International Harvester 475 tractor photo
1974 - 1977
Utility tractor
474
Series:475
Transmissions overview
8-speed partially synchronized
16-speed two-speed power shift
Transmission
Type:partially synchronized
Gears:8 forward and 4 reverse
Four synchronized gears (1-4) in low, high, and reverse ranges.
Speeds
With 16.9x30 rear tires.

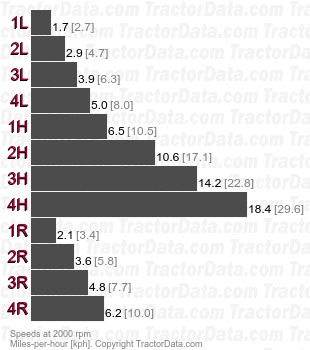

475  partially synchronized speeds
International Harvester 475  transmission photo
Transmission
Transmission:Torque Amplifier
Type:two-speed power shift
Gears:16 forward and 8 reverse
Speeds
With 16.9x30 rear tires.

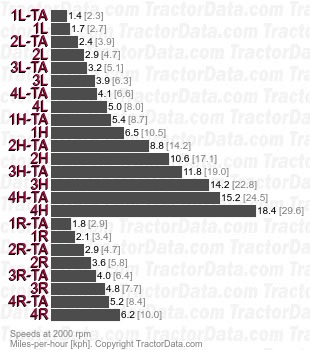

475 Torque Amplifier two-speed power shift speeds
