AGCO Allis 8630

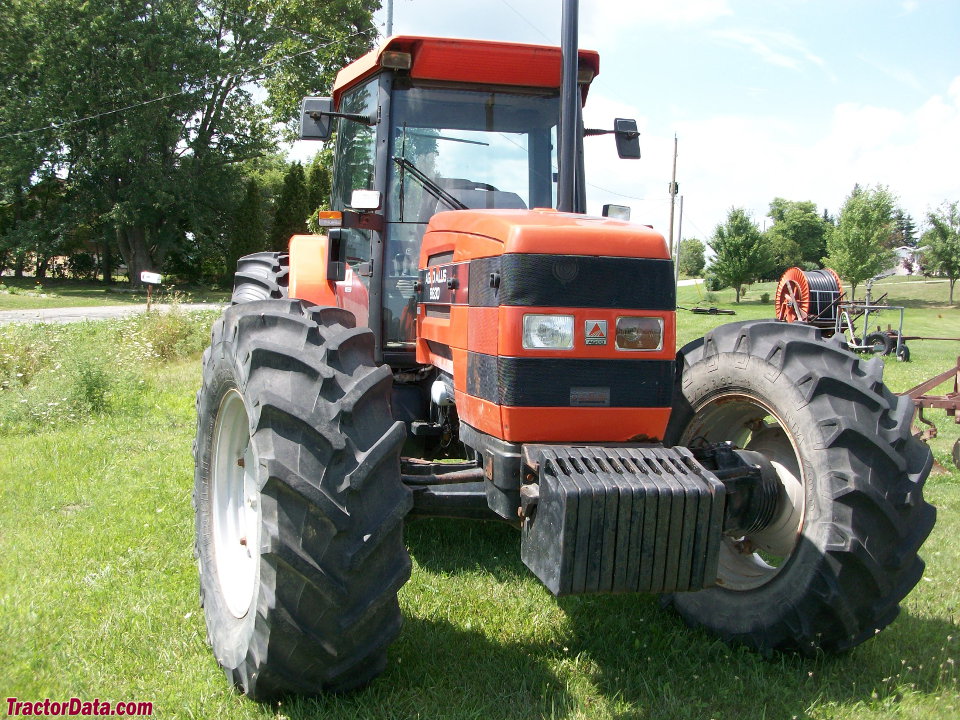

AGCO Allis 8630 tractor photo
1991 - 1997
8600 Series
Row-Crop tractor
SAME built
Series:86108630
Production
Distributor:AGCO Allis
Manufacturer:SAME
Type:Row-Crop tractor
Factory:Italy
Original price:$65,500 (1997 )
AGCO Allis 8630 Power
PTO (claimed):119 hp
88.7 kW
Drawbar (tested):93.59 hp
69.8 kW
PTO (tested):119.6 hp
89.2 kW
power test details ...
AGCO Allis 8630 Engine
SLH 6.0L 6-cyl diesel
Fuel tank:55.5 gal
210.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:24-speed partially synchronized
 36-speed partial power shift
Transmission details ...
Hydraulics
Type:open center
Valves:3
Pump flow:27.7 gpm
104.8 lpm
Tractor hitch
Rear Type:III/II
Rear lift:10010 lbs
4540 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E/1000/1000E
Dimensions & Tires
Wheelbase:110 inches
279 cm
Weight:10500 lbs
4762 kg
Front tire:11.00-16
Rear tire:18.4R38
Full dimensions and tires ...
8630 Serial Numbers
Location:Console, right side
1991:1001
1992:1157
1993:1251
1994:1444
1995:1501
1996:1509

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
