Tractors > AGCO Allis > 6690

AGCO Allis 6690 - transmission

AGCO Allis 6690 tractor photo
1991 - 1997   6600 Series
Utility tractor
Series back:AGCO Allis 6680
more AGCO Allis 6690 specifications...






Transmission:

Type:synchromesh
Gears:12 forward and reverse
Clutch:305mm dry disc
Oil capacity:61 qts [57.7 L]
Four synchronized gears in three ranges.
Speeds:With 16.9R34 rear tires.

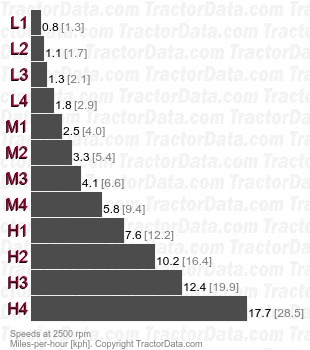

6690  synchromesh speeds


Transmission:

Gears:24 forward and 12 reverse


Transmission:

Gears:16 forward and reverse


Transmission:

Type:partial power shift
Gears:30 forward and reverse
Five gears (1-5) in three ranges (L/M/H) with high-low power shift.
