Deutz D 5506
| | 1967 - 1974 |
| 06 Series | | Utility tractor |
|
| Production |
| Manufacturer: | Deutz
|
| Type: | Utility tractor
|
| Variants |
| D5506: | 2WD
|
| D5506A: | 4WD
|
| Deutz D 5506 Power |
| Engine: | 52 hp
38.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Cab: | Open operator station.
|
| Transmissions: | 8-speed unsynchronized gear
|
| | 8-speed synchromesh
|
| | 12-speed synchromesh with creeper
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 8.6 gpm
32.6 lpm
|
| Tractor hitch |
| Rear lift: | 4189 lbs
1900 kg
|
| Power Take-off (PTO) |
| Rear RPM: | 540, 1000
|
| Page information |
| Last update: | January 21, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

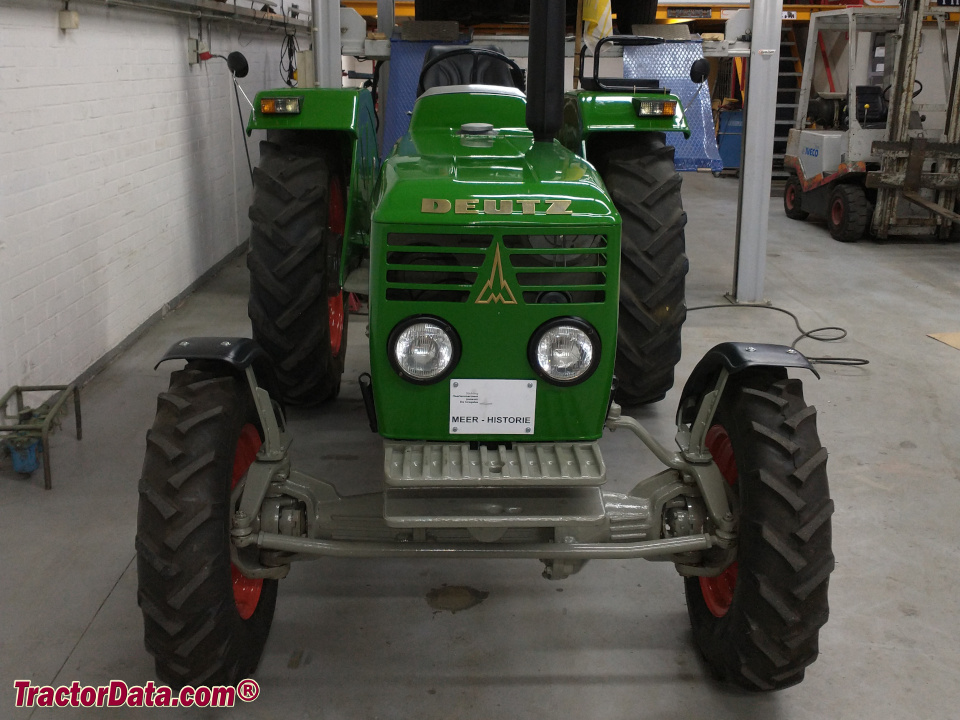

Deutz D 5506 photos...
Full dimensions and tires ...
