Deutz-Fahr DX 4.70 Transmission


Deutz-Fahr DX 4.70 tractor photo
1983 - 1989
DX4 Series
Utility tractor
Series:DX 4.50DX 4.70
Transmissions overview
15-speed fully synchronized
20-speed creeper
Transmission
Type:fully synchronized
Gears:15 forward and 5 reverse
Clutch:cerametallic disc
Oil capacity:40.15 qts
38.0 L
Five gears (1-5) in three ranges (L/M/H) plus reverse (R) range.
Speeds
With 18.4-34 rear tires

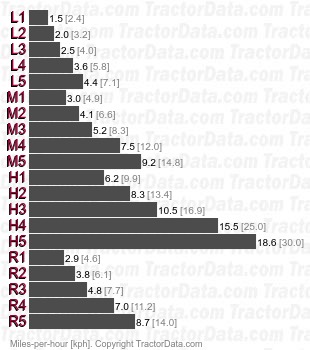

DX 4.70  fully synchronized speeds
Transmission
Type:creeper
Gears:20 forward and 5 reverse
Speeds
With 18.4-34 rear tires.

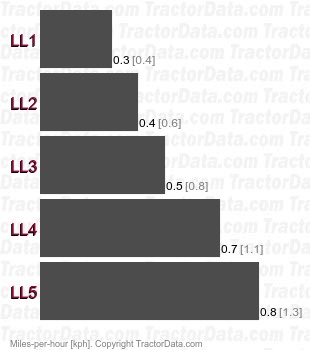

DX 4.70  creeper speeds
