Tractors > Deutz-Fahr > DX 4.70

Deutz-Fahr DX 4.70 - tests

Deutz-Fahr DX 4.70 tractor photo
1983 - 1989   DX Series
Row-Crop tractor
Series next:Deutz-Fahr DX 6.30
more Deutz-Fahr DX 4.70 specifications...






Nebraska Tractor Test 1575:

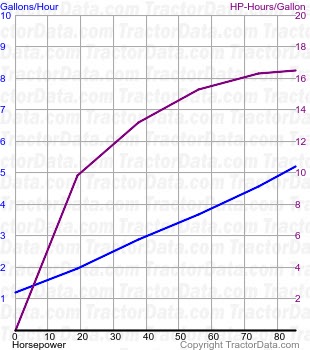

DX 4.70 fuel use from test 1575
Test Date:September 10 - 19, 1985
Type:Diesel 15-speed 4WD
PTO power (rated engine speed):85.18 hp [63.5 kW]
PTO fuel use (engine speed):5.2 gal/hour [19.7 l/hour]
PTO power (rated PTO speed):84.35 hp [62.9 kW]
PTO fuel use (PTO speed):5.0 gal/hour [18.9 l/hour]
Drawbar power (max):73.23 hp [54.6 kW]
Drawbar fuel use (max):5.1 gal/hour [19.3 l/hour]
Drawbar pull (max):10,502 lbs [4763 kg]
Max pull gear:3L
Test report:PDF file
