Transmissions overview | |
12-speed | |
12-speed shuttle | |
20-speed creeper |
Transmission | |
Gears: | 12 forward and 4 reverse |
Clutch: | 280mm dry disc |
Four gears (1-4) in three ranges (low, medium, high) plus reverse range. |

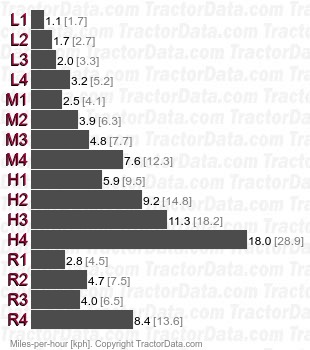

Speeds | |
Transmission | |
Type: | shuttle |
Gears: | 12 forward and reverse |
Clutch: | 280mm dry disc |
Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle. |
Speeds | |
Transmission | |
Type: | creeper |
Gears: | 20 forward and 8 reverse |
Clutch: | 280mm dry disc |
Additional two forward and one reverse creeper ranges added to the basic transmission. |

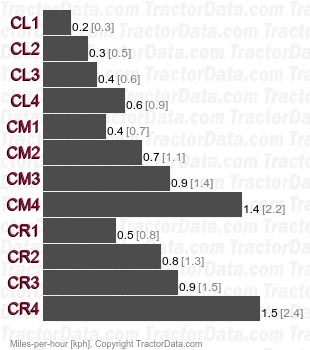

Speeds | |
