Fiat 850 Super Transmission


No photo available
1972 - 1974
Row-Crop tractor
Transmissions overview
12-speed
16-speed creeper
Transmission
Gears:12 forward and 4 reverse
Clutch:304.8mm dry disc
Four gears in three ranges, plus reverse range.
Speeds
With 16.9/14-38 rear tires.

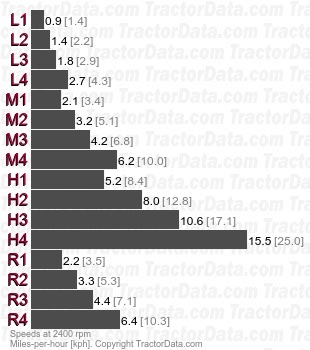

850 Super   speeds
Transmission
Type:creeper
Gears:16 forward and 4 reverse
Optional creeper adds an additional range to the transmission.
Speeds
With 16.9/14-38 rear tires.

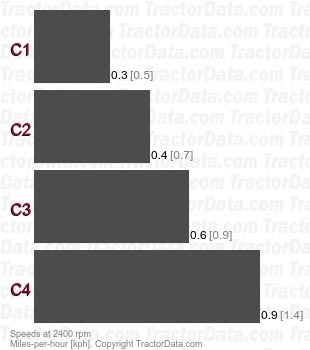

850 Super  creeper speeds
