Fiat 850 Transmission


Fiat 850 tractor photo
1969 - 1975
Utility tractor
Transmissions overview
12-speed partially synchronized
16-speed creeper
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Clutchcerametallic disc
Four synchronized gears in three ranges, plus reverse range.
Speeds
With 16.9/14-34 rear tires.

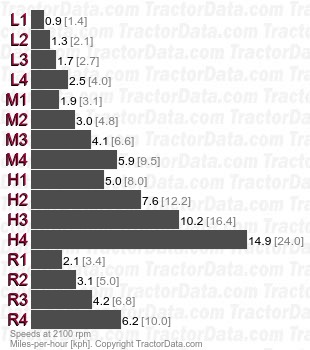

850  partially synchronized speeds
Transmission
Typecreeper
Gears16 forward and 4 reverse
Speeds
With 16.9/14-34 rear tires.

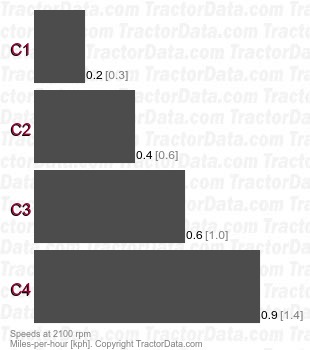

850  creeper speeds
