    John Deere 5410 - engine

    John Deere 5410 tractor photo
    1998 - 2001   5010 Utility Series
    Utility tractor
    Previous model:John Deere 5400
    Next model:John Deere 5420
    Larger:John Deere 5510
    Smaller:John Deere 5310
    more John Deere 5410 specifications...






    Engine Detail:

     John Deere 4045D
     diesel
     4-cylinder
     liquid-cooled
     276 ci [4.5 L]
    Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
    Power:81 hp [60.4 kW]
    Fuel use:4.21 gal/hour [15.9 l/hour]
    Compression:17.6:1
    Rated RPMs:2400
    Idle RPMs:825-2600
    Operating RPMs:1600-2400
    Torque:179.2 lb-ft [243.0 Nm]
    Torque RPMs:1400
    Firing order:1-3-4-2
    Starter volts:12
    Oil capacity:9 qts [8.5 L]
    Oil change:100 h
    Coolant capacity:11.4 qts [10.8 L]
    Coolant change:2000 h
    Intake valve clearance:0.014 inches [0.356 mm]
    Exhaust valve clearance:0.018 inches [0.457 mm]

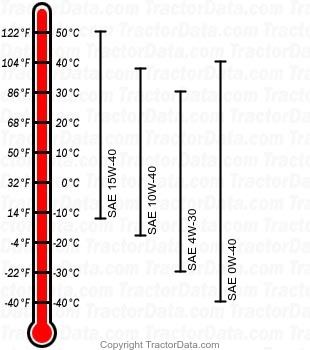

    5410 diesel engine oil chart
