John Deere 5210 - transmission

John Deere 5210 tractor photo
1998 - 2001   5010 Utility Series
Utility tractor
Previous model:John Deere 5200
Next model:John Deere 5220
Series next:John Deere 5310
more John Deere 5210 specifications...






Transmission:

Transmission:CollarShift
Type:unsynchronized gear
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts [37.9 L]

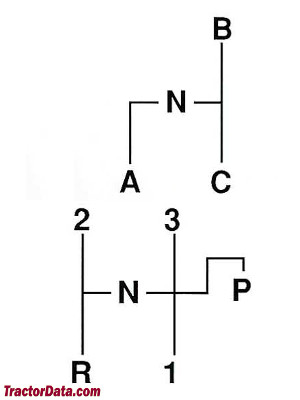

The Collar Shift transmission is controlled with two levers and the foot clutch. The right-hand lever selects one of three speeds (1-3) or reverse (R). The left-hand lever selects one of three ranges (A-C). The tractor must be stopped, and clutch used, to shift either speed or range.
Speeds:With 16.9-28 rear tires.
5210 CollarShift unsynchronized gear speeds


Transmission:

Transmission:SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:40 qts [37.9 L]
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Synchronized shifting, using the clutch, between the three forward speeds and reverse. Tractor must be stopped, and clutch used, to shift range.
Speeds:With 16.9-28 rear tires.
5210 SyncShuttle partially synchronized speeds


Transmission:

Transmission:PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Oil capacity:46 qts [43.5 L]

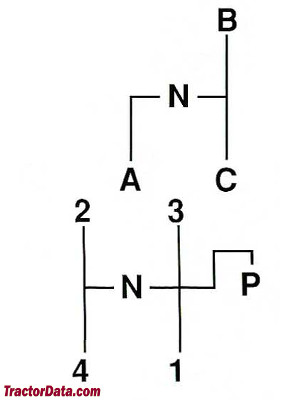

Four speeds (1-4) in three ranges (A-C) with forward-reverse shuttle lever. Direction changes may be done while moving using the left-hand shuttle lever. Speed changes are synchronized using the clutch. Tractor must be stopped, and clutch used, to shift ranges. At tractor start-up, clutch pedal must be cycled once before tractor will move.
Speeds:With 16.9-28 rear tires.

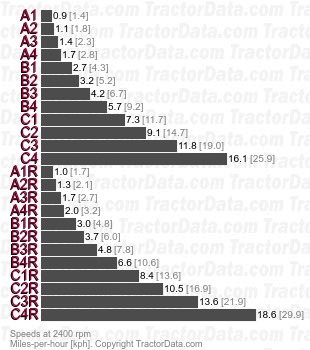

5210 PowrReverser power shuttle speeds
