Tractors > John Deere > 5210

John Deere 5210 - engine

John Deere 5210 tractor photo
1998 - 2001   5010 Utility Series
Utility tractor
Previous model:John Deere 5200
Next model:John Deere 5220
Series next:John Deere 5310
more John Deere 5210 specifications...






Engine Detail:

 John Deere 3029D
 diesel
 3-cylinder
 liquid-cooled
 179 ci [2.9 L]
Bore/Stroke:4.19x4.33 inches [106 x 110 mm]
Power:53 hp [39.5 kW]
Compression:17.8:1
Rated RPM:2400
Idle RPM:825-2600
Operating RPM:1600-2400
Torque:119.5 lb-ft [162.0 Nm]
Torque RPM:1400
Starter volts:12

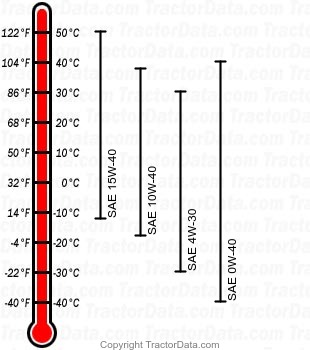

Oil capacity:9 qts [8.5 L]
Oil change:100 h
Coolant capacity:10 qts [9.5 L]
Coolant change:2000 h
