Massey Ferguson 492 Transmission


Massey Ferguson 492 tractor photo
2004 - 2006
400 Series
Utility tractor
Series map:
491
492
89.0hp
99.0hp
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Clutch330mm dry disc
Three gears (1-3) plus reverse (R) with low/high ranges and an additional synchronized slow/fast range lever. Synchronized shifting between gears 2-3 and the slow/fast range.

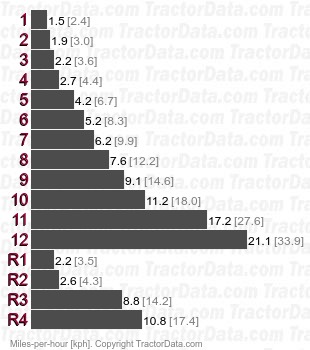

Speeds
492  partially synchronized speeds
Shift Pattern
Massey Ferguson 492 transmission controls
