Tractors > Cletrac > HG

Cletrac HG Tests



Cletrac HG tractor photo
1939 - 1951
Agricultural Crawler tractor
Series map:
HG
17.8hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 324: 113 gasoline 3-speed crawler
NTTL 434: 133 gasoline 3-speed crawler
Nebraska Tractor Test 324

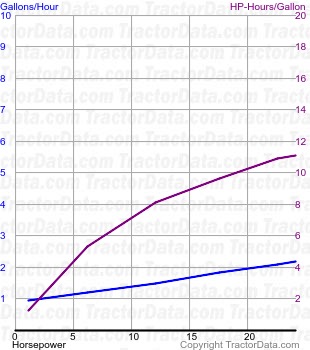

HG fuel use from test 324
Nebraska Tractor Test 324
113 gasoline 3-speed crawler
August 12, 1939 - August 30, 1938
Link: Nebraska Tractor Test 324 file
Belt power (max)19.4 hp
14.5 kW
Belt fuel use (max)2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power14.01 hp
10.4 kW
Fuel use7.0 gal/hour
26.5 l/hour
Gear 2 used for power test.
Max pull2800 lbs
1270 kg
Gear 1 used for pull test.
Nebraska Tractor Test 434

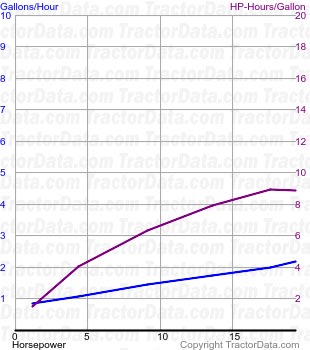

HG fuel use from test 434
Nebraska Tractor Test 434
133 gasoline 3-speed crawler
November 11 - 21, 1949
Link: Nebraska Tractor Test 434 file
Belt power (max)25.3 hp
18.9 kW
Belt fuel use (max)2.3 gal/hour
8.7 l/hour
Drawbar performance
Max power21.3 hp
15.9 kW
Gear 2 used for power test.
Max pull3940 lbs
1787 kg
Gear 1 used for pull test.
