Tractors > Zetor > 12045

Zetor 12045

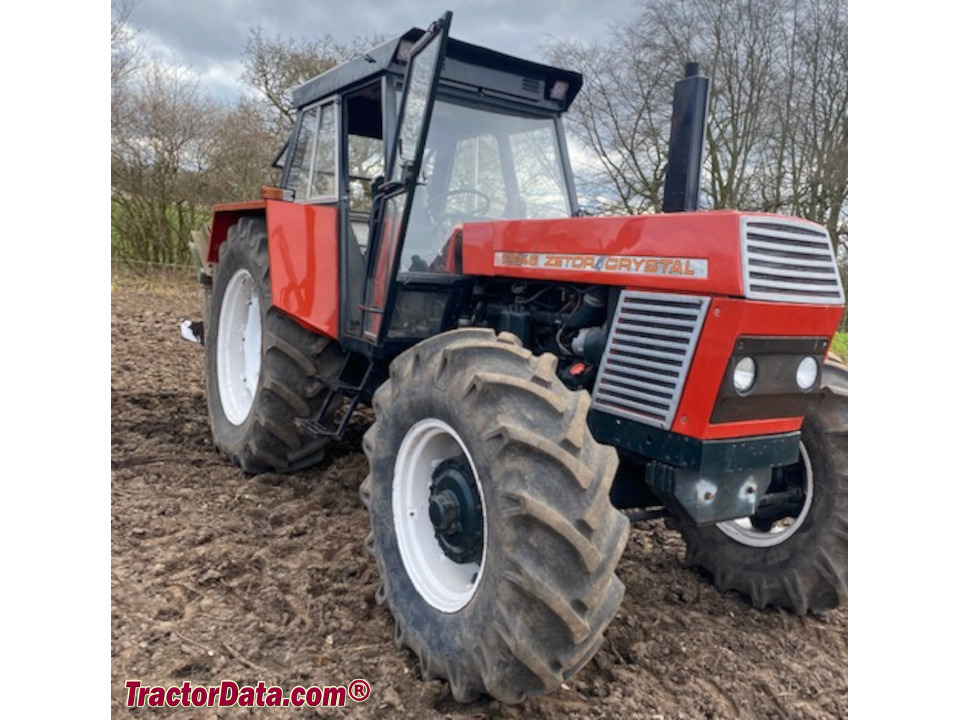

Zetor 12045 tractor photo
1974 - 1987   Crystal UR2 Series
Row-Crop tractor
Series next:Zetor 14045
Series back:Zetor 12011






Production:

Manufacturer:Zetor
Factory:Brno, Czechoslovakia


Variants:

12011:2WD
12045:4WD


Zetor 12045 Engine:

   Zetor 6.8L 6-cyl diesel
full engine details ...


Capacity:

Fuel:34.3 gal [129.8 L]


3-Point Hitch:

Rear Type:II
Control:lower-link draft control
Rear lift:7496 lbs [3400 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000
Engine RPM:540@1900
2200@1900


Dimensions & Tires:

Wheelbase:106 inches [269 cm]
Weight:10560 lbs [4790 kg]
Front tire:14.9-24
Rear tire:18.4-34
full dimensions and tires ...


12045 Serial Numbers:


how to read serial numbers...



Zetor 12045 Power:

Engine:120 hp [89.5 kW]
PTO (claimed):112 hp [83.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic dry disc
Cab:Cab standard.


Hydraulics:

Type:open center
Valves:1
Pump flow:8.4 gpm [31.8 lpm]


Electrical:

Charging system:alternator


Battery:

Number:2
Volts:12
