Tractors > Zetor > 4340

Zetor 4340 Transmission



Zetor 4340 tractor photo
1993 - 1997
Range 1 Series
Utility tractor
Series:4320 ← 4340 → 6320
4341 ↓
Transmissions overview
10-speed synchro
10-speed
Transmission
Type:synchro
Gears:10 forward and 2 reverse
Clutch:hydraulic 304.8mm cerametallic disc
Speeds
With 16.9-28 rear tires.

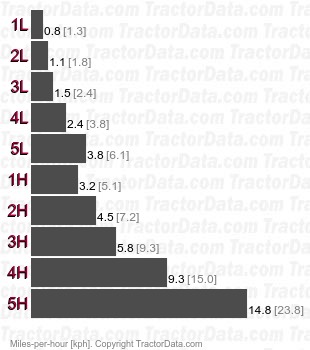

4340 synchro speeds
Transmission
Transmission:mechanical shuttle
Gears:10 forward and reverse
Speeds
With 16.9-28 rear tires. Reverse speeds are 10% faster than forward.

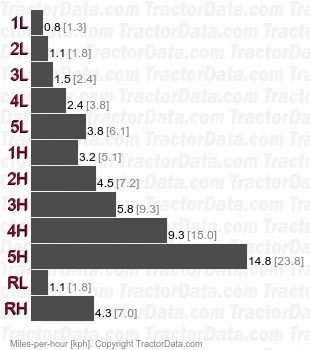

4340 mechanical shuttle speeds
