Tractors > Ford > 961
      -Brand search:


     Ford Tractor Data Book
    Ford Tractor Data Book

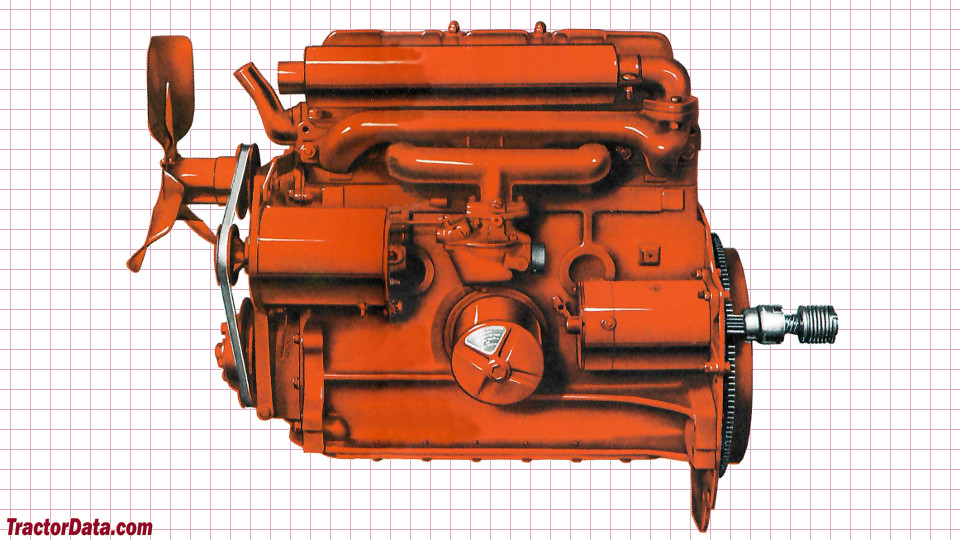

    Ford 961 - engine

    Ford 961 tractor photo  FO-20 I&T Manual: Ford 501, 600, 601, 700, 701, 800, 801, 900, 901, 1801, 2000, 4000
    I&T Shop Manual
    1958 - 1962   901 Powermaster Series
    Row-Crop tractor
    Previous model:Ford 960
    more Ford 961 specifications...






    Engine Detail:

     Ford EAF
     gasoline
     4-cylinder 8-valve
     liquid-cooled vertical overhead valve
     172 ci [2.8 L]
    Bore/Stroke:3.90x3.60 inches [99 x 91 mm]
    Power:62.6 hp [46.7 kW]
    Air cleaner:oil bath
    Compression:7.5:1
    Rated RPMs:2000
    Torque:166 lb-ft [225.1 Nm]
    Torque RPMs:1600
    Firing order:1-2-4-3
    Starter volts:6
    Oil capacity:5 qts [4.7 L]
    Oil change:100 h
    Coolant capacity:15 qts [14.2 L]
    Sparkplug gap:0.027 inches [0.686 mm]
    Point gap:0.025 inches [0.635 mm]
    Intake valve clearance:0.015 inches [0.381 mm] (hot)
    Exhaust valve clearance:0.015 inches [0.381 mm] (hot)
    961 gasoline engine oil chart


    Engine Detail:

     Ford EAF
     LP gas
     4-cylinder 8-valve
     liquid-cooled
     172 ci [2.8 L]
    Bore/Stroke:3.90x3.60 inches [99 x 91 mm]
    Air cleaner:oil bath
    Compression:8.65:1
    Rated RPMs:2200
    Firing order:1-2-4-3
    Starter volts:6
    Sparkplug gap:0.027 inches [0.686 mm]
    Point gap:0.025 inches [0.635 mm]
    Intake valve clearance:0.015 inches [0.381 mm] (hot)
    Exhaust valve clearance:0.015 inches [0.381 mm] (hot)


    Engine Detail:

     Ford
     diesel
     4-cylinder 8-valve
     liquid-cooled
     172 ci [2.8 L]
    Bore/Stroke:3.90x3.60 inches [99 x 91 mm]
    Power:56.3 hp [42.0 kW]
    Air cleaner:oil bath
    Compression:16.8:1
    Rated RPMs:2200
    Torque:140.4 lb-ft [190.4 Nm]
    Torque RPMs:1400
    Firing order:1-2-4-3
    Starter volts:12
    Oil capacity:5 qts [4.7 L]
    961 diesel engine oil chart
