CaseIH STX375 Tests


CaseIH STX375 tractor photo
2000 - 2005
Steiger STX Series
Four-wheel Drive (4WD) tractor
Series map:
STX325
STX375
STX425
325.0hp
375.0hp
425.0hp
OCED Tractor Test 1783

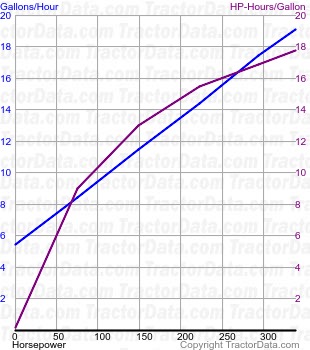

STX375 fuel use from test 335
OCED Tractor Test 1783
Diesel 16-speed 4WD
October 9 - 18, 2000
Link: OCED Tractor Test 1783 file
PTO performance
Max power386.64 hp
288.3 kW
Fuel use19.1 gal/hour
72.3 l/hour
Power at rated engine speed337.93 hp
252.0 kW
Fuel use19.1 gal/hour
72.3 l/hour
Drawbar performance
Max power313.95 hp
234.1 kW
Fuel use19.1 gal/hour
72.3 l/hour
Gear 5 used for power test.
Max pull33,658 lbs
15267 kg
Gear 1 used for pull test.
