CaseIH MXU135 - transmission

CaseIH MXU135 tractor photo
2004 - 2006   MXU Maxxum Series
Utility tractor
Series back:CaseIH MXU125
more CaseIH MXU135 specifications...






Transmission:

Type:partial powershift
Gears:24 forward and reverse
Clutch:electro-hydraulic wet discs
Four gears (1-4) in three ranges (I-II-III) with low-high power shift. Gears and ranges are synchronized.


Transmission:

Type:partial powershift
Gears:16 forward and reverse
Clutch:electro-hydraulic wet discs
Four gears (1-4) in four ranges (A-D). Power shift between gears. Auto Shift feature automatically matches shifts within selected range to match load.

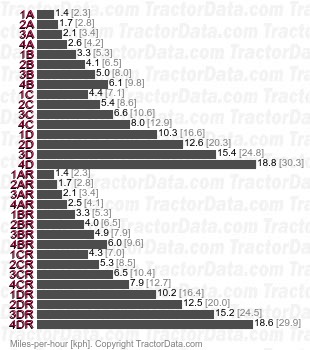

Speeds:
MXU135  partial powershift speeds
