CaseIH MXU125 Engine


CaseIH MXU125 tractor photo
2004 - 2006
MXU Maxxum Series
Utility tractor
Series map:
MXU115
MXU125
MXU135
116.0hp
125.0hp
135.0hp
Engine Detail
CNH
turbocharged intercooled diesel
6-cylinder
liquid-cooled
Displacement410.6 ci
6.7 L
Bore/Stroke4.094x5.196 inches
104 x 132 mm
Power (gross)125 hp
93.2 kW
Fuel systemBosch electronic direct injection with 8-hole injectors
Air cleanerdual paper elements
Pre-heatinggrid heater
Compression17.0:1
Rated RPM2200
Starterelectric
Starter volts12

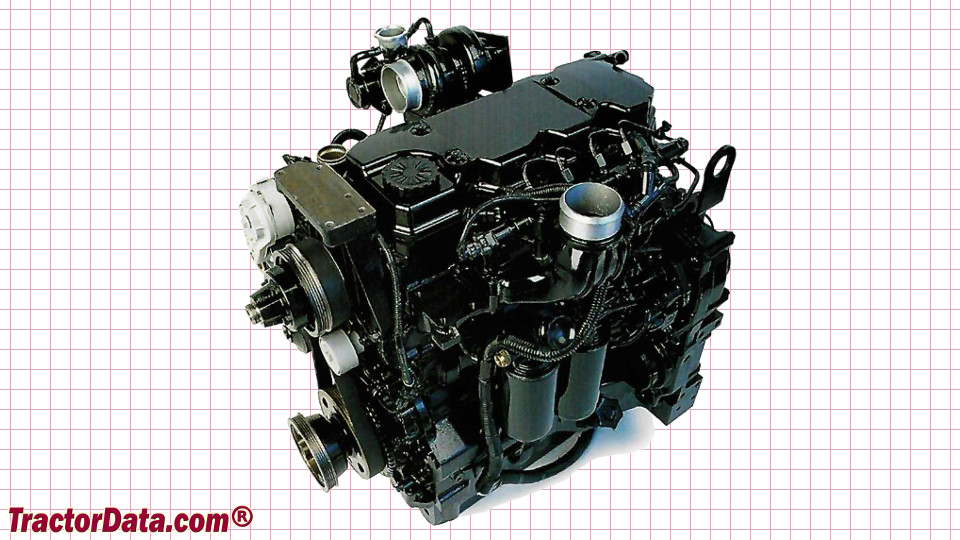

CaseIH MXU125 Engine
CaseIH MXU125 engine image
