Tractors > CaseIH > MXU110

CaseIH MXU110 - tests

CaseIH MXU110 tractor photo
2004 - 2006   MXU Maxxum Series
Utility tractor
Series next:CaseIH MXU115
Series back:CaseIH MXU100
more CaseIH MXU110 specifications...






OCED Tractor Test 2245:

Nebraska summary:494

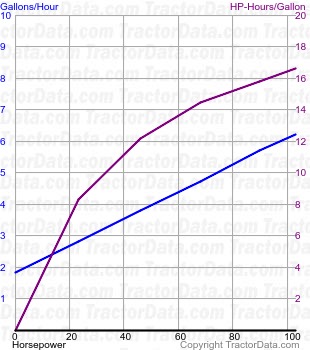

MXU110 fuel use from test 494
Test Date:February 1 - March 1, 2005
Type:Diesel 16-speed 4WD
PTO power (max):114.7 hp [85.5 kW]
PTO fuel use (max):6.4 gal/hour [24.2 l/hour]
PTO power (rated engine speed):102.9 hp [76.7 kW]
PTO fuel use (engine speed):6.2 gal/hour [23.5 l/hour]
PTO power (rated PTO speed):107.3 hp [80.0 kW]
PTO fuel use (PTO speed):6.3 gal/hour [23.8 l/hour]
Drawbar power (max):86.4 hp [64.4 kW]
Drawbar fuel use (max):6.1 gal/hour [23.1 l/hour]
Drawbar pull (max):12,320 lbs [5588 kg]
Max pull gear:1A
Test report:PDF file
