Tractors > CaseIH > MXU110

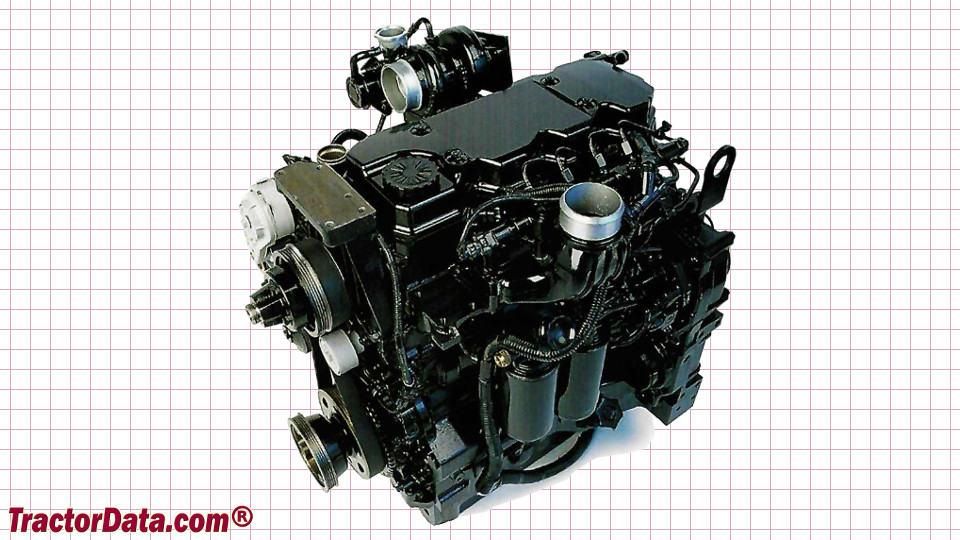

CaseIH MXU110 - engine

CaseIH MXU110 tractor photo
2004 - 2006   MXU Maxxum Series
Utility tractor
Series next:CaseIH MXU115
Series back:CaseIH MXU100
more CaseIH MXU110 specifications...






Engine Detail:

 CNH
 turbocharged intercooled diesel
 4-cylinder
 liquid-cooled
 273.7 ci [4.5 L]
Bore/Stroke:4.094x5.196 inches [104 x 132 mm]
Power (gross):115 hp [85.8 kW]
Fuel system:Bosch mechanical direct injection with 8-hole injectors
Air cleaner:dual paper elements
Pre-heating:grid heater
Compression:17.0:1
Rated RPM:2200
Starter volts:12
