| 2004 - 2008 |
JXU Maxxima Series | Utility tractor |
|
Series map:
JX1090U
JX1100U
90.0hp
98.0hp
Transmissions overview |
12-speed synchronized shuttle |
24-speed partial power shift with synchronized shuttle |
24-speed partial power shift with power shuttle |
20-speed synchronized shuttle with creeper |
Transmission |
Type | synchronized shuttle
|
Gears | 12 forward and reverse
|
Clutch | dry disc
|
Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender. |

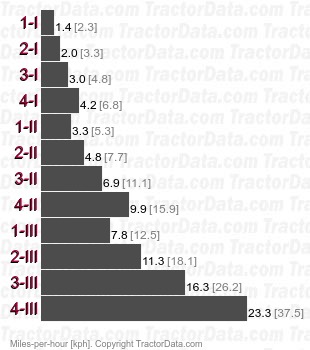

Speeds |
|
Transmission |
Type | partial power shift with synchronized shuttle
|
Gears | 24 forward and 12 reverse
|
Four gears (1-4) in three ranges (I, II, III) with two-speed (lo/hi) power shift. Push-button power shift located on the gear shift lever and provides a lower downshift for every forward gear. Mechanical synchronized shuttle. |
Transmission |
Type | partial power shift with power shuttle
|
Gears | 24 forward and reverse
|
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column. |
Transmission |
Type | synchronized shuttle with creeper
|
Gears | 20 forward and 12 reverse
|
The creeper option adds an additional eight forward speeds to the basic 12x12 transmission. |
