Tractors > John Deere > 7820

John Deere 7820 - tests

John Deere 7820 tractor photo
2004 - 2007   7020 Series
Row-Crop tractor
Previous model:John Deere 7810
Next model:John Deere 7830
Series next:John Deere 7920
Series back:John Deere 7720
more John Deere 7820 specifications...






OCED Tractor Test 1834:

Nebraska summary:426

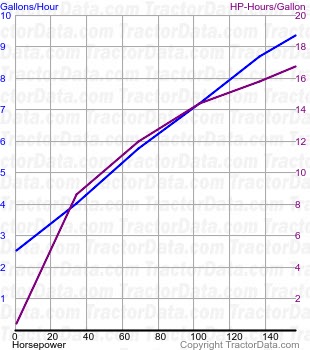

7820 fuel use from test 426
Test Date:March 31 - April 21, 2004
Type:496 diesel AutoQuad-Plus 4WD
PTO power (max):174.31 hp [130.0 kW]
PTO fuel use (max):9.6 gal/hour [36.3 l/hour]
PTO power (rated engine speed):156.55 hp [116.7 kW]
PTO fuel use (engine speed):9.4 gal/hour [35.6 l/hour]
PTO power (rated PTO speed):170.96 hp [127.5 kW]
PTO fuel use (PTO speed):9.6 gal/hour [36.3 l/hour]
Drawbar power (max):143.52 hp [107.0 kW]
Drawbar fuel use (max):9.5 gal/hour [36.0 l/hour]
Drawbar pull (max):21,634 lbs [9813 kg]
Max pull gear:A3
Test report:PDF file
