John Deere 5525 Transmission


John Deere 5525 tractor photo
2005 - 2008
5025 Series
Utility tractor
Series:542555255625
5095M
Transmissions overview
9-speed partially synchronized
12-speed power shuttle
24-speed two-speed power shift
Transmission
Transmission:John Deere SyncShuttle
Type:partially synchronized
Gears:9 forward and 3 reverse
Clutch:dry disc
Oil capacity:41.2 qts
39.0 L
Oil type:
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard

Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 16.9-30 rear tires.

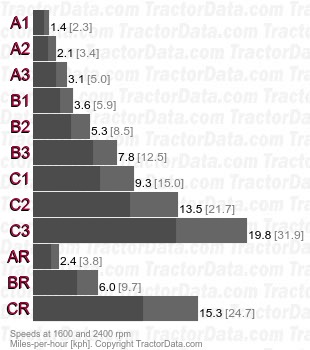

5525 SyncShuttle partially synchronized speeds
Transmission
Transmission:John Deere PowrReverser
Type:power shuttle
Gears:12 forward and reverse
Clutch:wet disc
Oil capacity:46 qts
43.5 L
Oil type:
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard

Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 16.9-30 rear tires.

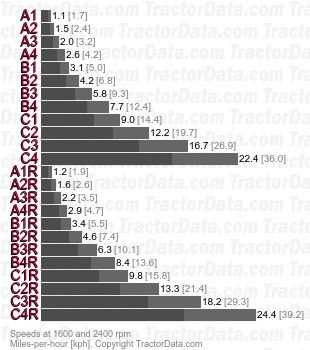

5525 PowrReverser power shuttle speeds
Transmission
Transmission:John Deere PowrReverser Hi/Lo
Type:two-speed power shift
Gears:24 forward and reverse
Clutch:wet disc
Oil capacity:48 qts
45.4 L
Adds a push-button high-low power shift to the PowrReverser transmission. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.

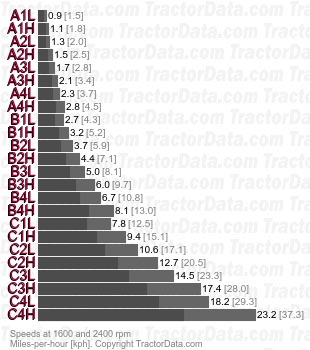

5525 PowrReverser Hi/Lo two-speed power shift speeds
