John Deere 4720 Engine


John Deere 4720 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4520
4720
53.1hp
58.1hp
Engine Detail
John Deere 4024T
turbocharged diesel
4-cylinder
liquid-cooled vertical
Displacement148.9 ci
2.4 L
Bore/Stroke3.386x4.134 inches
86 x 105 mm
Power58.1 hp
43.3 kW
Air cleanerpaper and felt elements
Compression20.5:1
Rated RPM2400
Torque155 lb-ft
210.2 Nm
Torque RPM1440
Starter volts12
Starter power2.9 hp
2.2 kW
ROPS Coolant capacity6.4 qts
6.1 L
Cab Coolant capacity8.8 qts
8.3 L
Engine Oil

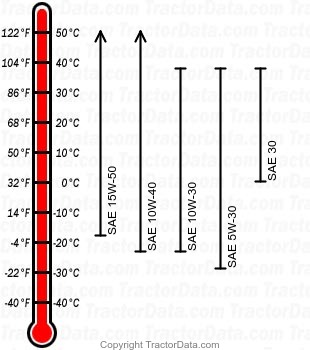

4720 diesel engine oil chart
Oil capacity7.9 qts
7.5 L
