Tractors > Belarus > 525

Belarus 525 - transmission

No photo available
1983 - 1996   Progress Series
more Belarus 525 specifications...






Transmission:

Type:unsynchronized
Gears:9 forward and 2 reverse
Oil capacity:42 qts [39.7 L]
Oil type:
SAE 80-90 or 90 GL-5

Tractor must be stopped and clutch used to change gears or ranges. With the shift lever in neutral and clutch pressed, a knob on top can be rotated to select range, then the lever can be moved to select the gear.
Speeds:15.8x38 rear tires.

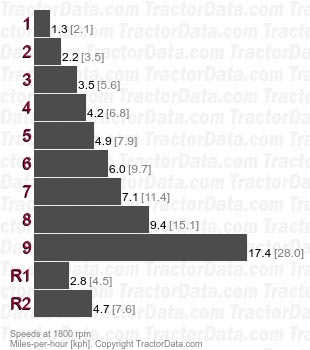

525  unsynchronized speeds
