Belarus 420A


Belarus 420A tractor photo
1983 - 1997
400A Series
Utility tractor
Production
ManufacturerBelarus
Utility tractor
Built in Minsk, Belarus
Original price was $14,500 in 1997
Variants
400A2WD ROPS
405A2WD Cab
420A4WD ROPS
425A4WD Cab
Belarus 420A Engine
Belarus 4.1L 4-cyl diesel
Engine details ...
Belarus 420A Power
Engine57 hp
42.5 kW
PTO (claimed)51 hp
38.0 kW
Drawbar (tested)43.73 hp
32.6 kW
PTO (tested)50.68 hp
37.8 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesspur gear
Differential lockmechanical rear
Power steering
Mechanical band brakes
Four-post ROPS.
Capacity
Fuel19.5 gal
73.8 L
Hydraulic system4.1 gal
15.5 L
Hydraulics
Typeopen center
Capacity4.1 gal
15.5 L
Pressure2050 psi
141.3 bar
Valves2
Pump flow11.9 gpm
45.0 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)2990 lbs
1356 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540 (1.375)
Engine RPM540@1620
Dimensions & Tires
Wheelbase88.6 inches
225 cm
Weight7300 lbs
3311 kg
Front tire8.00-20
Rear tire13.6-38
Full dimensions and tires ...
420A Serial Numbers
Location:Serial number plate on the rear of the tractor, on the toolbox.
1983273449
1984276391
1985304013
1986327204
1987357102
1988389751
1989400329

FAQ: How to read a serial number table.
Electrical
Charging systemalternator
Charging amps50
Battery volts12
References

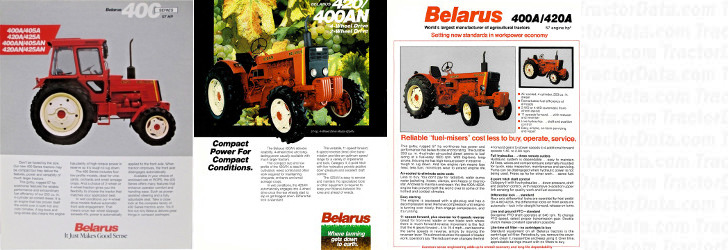

420A references literature
400 Series published in 1996, by Belarus
420/400AN published by Belarus
400A/420A published by Belarus
