Tractors > Avery > 14-28

Avery 14-28

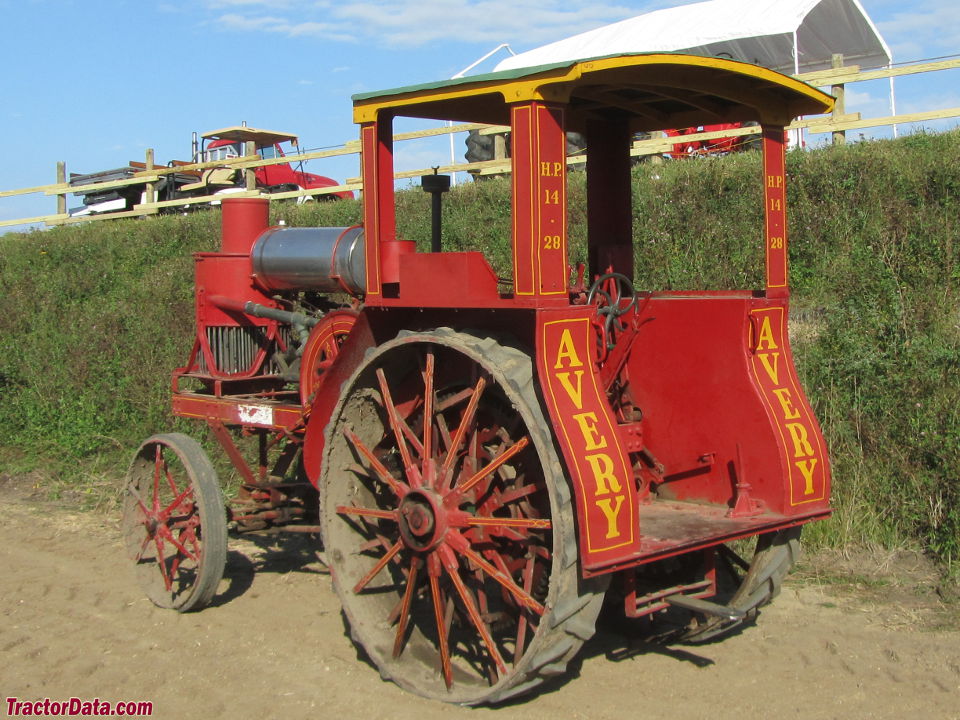

Avery 14-28 tractor photo
1919 - 1922
Standard-tread tractor






Production:

Manufacturer:Avery
Factory:Peoria, Illinois, USA


Avery 14-28 Engine:

   Avery 7.7L 4-cyl kerosene
full engine details ...


Capacity:

Fuel:20 gal [75.7 L]
Aux. fuel:3.25 gal [12.3 L]


Dimensions & Tires:

Weight:7540 lbs [3420 kg]
Front tire:36x6
Rear tire:60x16
full dimensions and tires ...


14-28 Serial Numbers:

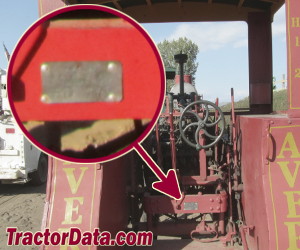

Location:Serial number plate in the front of the tractor's operator platform, below steering wheel.

- Serial numbers unknown -



Avery 14-28 Power:

Drawbar (claimed):14 hp [10.4 kW]
Belt (claimed):28 hp [20.9 kW]
Drawbar (tested):21.52 hp [16.0 kW]
Belt (tested):31.83 hp [23.7 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
