Tractors > John Deere > 9420

John Deere 9420 - tests

John Deere 9420 tractor photo
2002 - 2007   9020 Series
Four-wheel Drive (4WD) tractor
Previous model:John Deere 9400
Next model:John Deere 9430
Series next:John Deere 9520
Series back:John Deere 9320
more John Deere 9420 specifications...






OCED Tractor Test 1733:

Nebraska summary:223

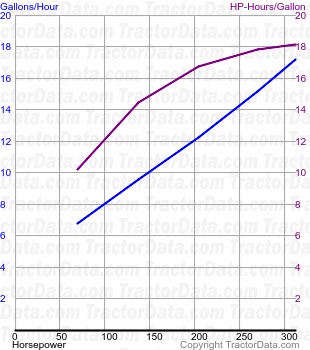

9420 fuel use from test 223
Test Date:May 2 - June 18, 1997
Type:Diesel 24-speed 4WD
PTO power (rated engine speed):312.25 hp [232.8 kW]
PTO fuel use (engine speed):17.2 gal/hour [65.1 l/hour]
PTO power (rated PTO speed):343.44 hp [256.1 kW]
PTO fuel use (PTO speed):18.0 gal/hour [68.1 l/hour]
Drawbar power (max):345.00 hp [257.3 kW]
Drawbar fuel use (max):20.3 gal/hour [76.8 l/hour]
Drawbar pull (max):38,409 lbs [17422 kg]
Max pull gear:A2L
Test report:PDF file
