John Deere WA-14 Transmission


John Deere WA-14 tractor photo
1968 - 1970
Four-wheel Drive (4WD) tractor
Wagner built
Series map:
WA-14
WA-17
225.0hp
280.0hp
Transmission
TransmissionFuller RTO-910
Gears10 forward and 2 reverse
Clutch355.6mm dry discs
Five forward and one reverse with air-assist hi/lo range selection. Shifting on the move possible by double clutching.

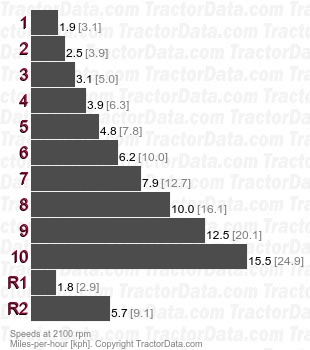

Speeds
WA-14 RTO-910  speeds
Shift Pattern
John Deere WA-14 transmission controls
