Versatile 950 Engine


Versatile 950 tractor photo
1977 - 1982
2 Series
Four-wheel Drive (4WD) tractor
Series map:
900
950
295.0hp
348.0hp
Engine Detail
Cummins VT-903-C350
turbocharged diesel
8-cylinder
liquid-cooled V8
Displacement903 ci
14.8 L
Bore/Stroke5.50x4.75 inches
140 x 121 mm
Power348 hp
259.5 kW
Air cleanerdual dry element
Pre-heatingether injection
Compression15.5:1
Rated RPM2400
Idle RPM1000-2640
Torque848 lb-ft
1149.9 Nm
Torque RPM1800
Starter volts12
Coolant capacity54 qts
51.1 L
Engine Oil

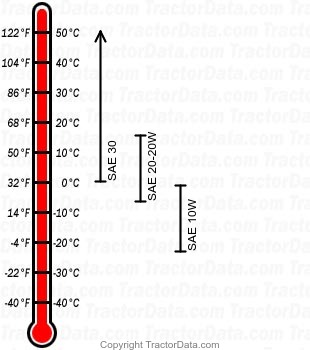

950 diesel engine oil chart
Oil capacity34 qts
32.2 L
