Versatile 900 Series II Engine
|
|
| Engine Detail | |
| Cummins V-903-C295 | |
| diesel | |
| 8-cylinder | |
| liquid-cooled V8 | |
| Displacement: | 903 ci 14.8 L |
| Bore/Stroke: | 5.50x4.75 inches 140 x 121 mm |
| Power: | 295 hp 220.0 kW |
| Air cleaner: | dual dry element |
| Pre-heating: | ether injection |
| Compression: | 16.5:1 |
| Rated RPM: | 2400 |
| Idle RPM: | 1000-2640 |
| Torque: | 706 lb-ft 957.3 Nm |
| Torque RPM: | 1800 |
| Starter volts: | 12 |
| Coolant capacity: | 53 qts 50.2 L |

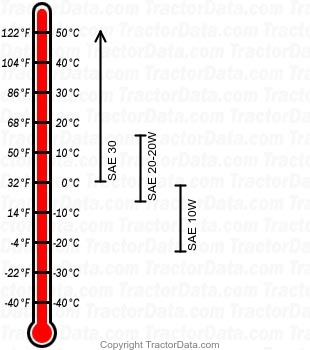

| Engine Oil | |
| |
| Oil capacity: | 34 qts 32.2 L |
