Tractors > Kubota > M7950

Kubota M7950 Transmission



Kubota M7950 tractor photo
1983 - 1994
M50 Series
Utility tractor
Series map:
M6950
M7950
M8950
71.0hp
81.0hp
96.0hp
Transmission
Typesynchronized
Gears12 forward and 4 reverse
Clutchdry plate
Oil capacity52.8 qts
50.0 L
Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.

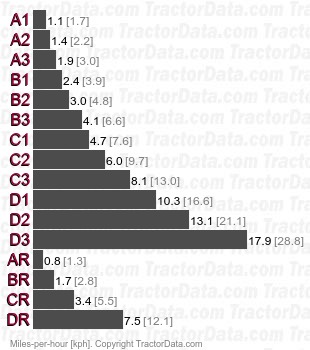

Speeds
With 18.4-30 rear tires.
M7950 synchronized speeds

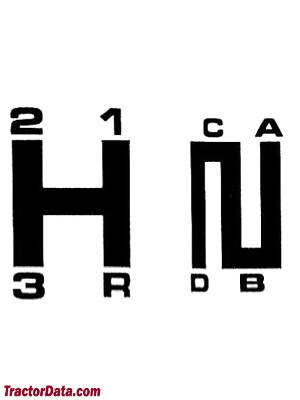

Shift Pattern
Kubota M7950 transmission controls
