Kubota L3300 Transmission


Kubota L3300 tractor photo
1994 - 1999
Grand L Series
Compact Utility tractor
Series map:
L2900
L3300
L3600
32.1hp
35.1hp
38.5hp
Transmissions overview
8-speed synchronized shuttle
8-speed power shuttle
Transmission
TransmissionFST
Typesynchronized shuttle
Gears8 forward and reverse
Clutchdry disc
Oil capacity41.2 qts
39.0 L
Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 12.4-24 rear tires.

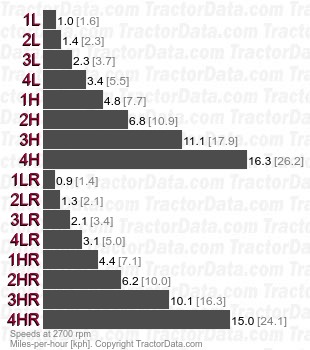

L3300 FST synchronized shuttle speeds
Transmission
TransmissionGlide Shift (GST)
Typepower shuttle
Gears8 forward and reverse
Clutchdry disc
Oil capacity41.2 qts
39.0 L
Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears.
Speeds
With 12.4-24 rear tires.

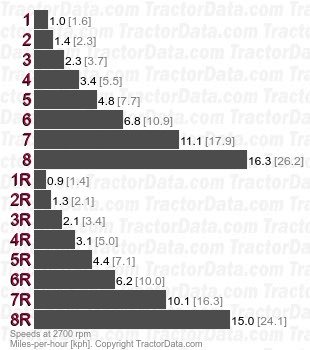

L3300 Glide Shift (GST) power shuttle speeds
