Kubota B7200 Transmission


Kubota B7200 tractor photo
1983 - 1990
Compact Utility tractor
Series map:
B6200
B7200
B8200
15.0hp
17.0hp
19.0hp
Transmissions overview
6-speed gear
hydrostatic
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch7.2-inch dry disc
Oil capacity12.7 qts
12.0 L
Three gears (1-3) plus reverse with high and low ranges.
Speeds
With 8-16 rear tires.
B7200  gear speeds
Shift Pattern
Kubota B7200 transmission controls
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity14.3 qts
13.5 L
Speeds
With 8-16 rear tires.

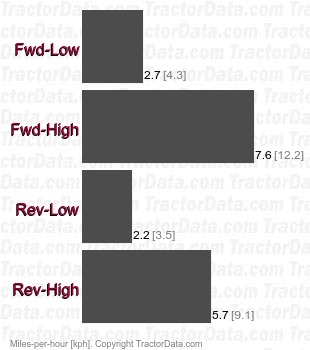

B7200  hydrostatic speeds
