Kubota M110 Transmission


Kubota M110 tractor photo
1998 - 2004
M Series
Utility tractor
Series:M110M120
Transmissions overview

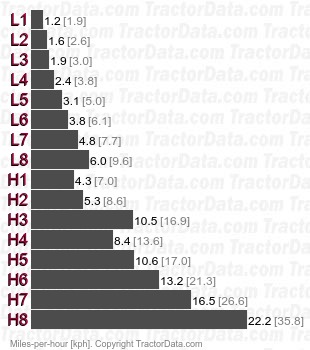

16-speed eight-speed power shift
24-speed creeper
Transmission
Type:eight-speed power shift
Gears:16 forward and reverse
Clutch:electro-hydraulic wet disc
Eight-speed push-button power shift with two ranges (low/high). Push-button clutch button for range shifts. Electro-hydraulic power shuttle.
Transmission
Type:creeper
Gears:24 forward and reverse
