CaseIH 9350 Transmission


CaseIH 9350 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9330
9350
9370
240.0hp
310.0hp
360.0hp
Transmissions overview
12-speed full power shift
12-speed
24-speed
Transmission
Typefull power shift
Gears12 forward and 3 reverse
Clutchhydraulic wet disc
Speeds

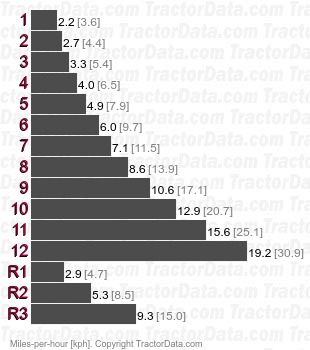

9350  full power shift speeds
Shift Pattern

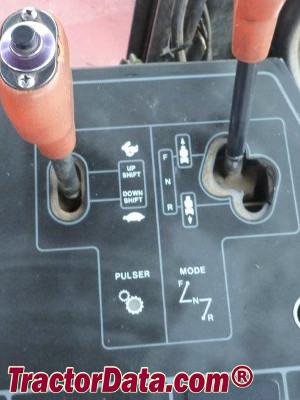

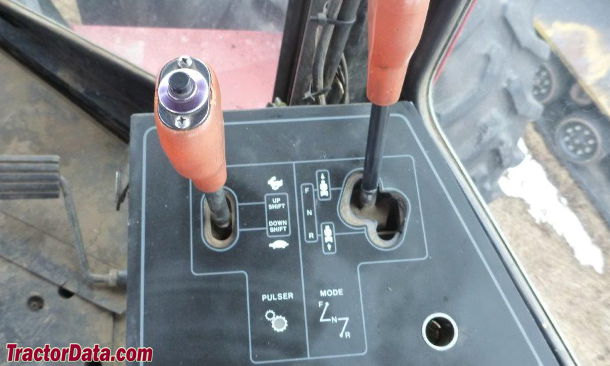

CaseIH 9350 transmission controls
Transmission
TransmissionSynchroShift
Gears12 forward and 3 reverse
Clutchwet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D).
Speeds
9350 SynchroShift  speeds
Transmission
TransmissionHi-Lo SynchroShift
Gears24 forward and 6 reverse
Clutchwet disc
Three synchronized gears (1-3) in four synchronized ranges (A-D) with a two-speed high/low shift.
Speeds

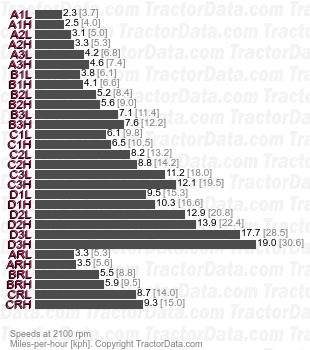

9350 Hi-Lo SynchroShift  speeds
