CaseIH 9350 Tests


CaseIH 9350 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9330
9350
9370
240.0hp
310.0hp
360.0hp
OCED Tractor Test 1707

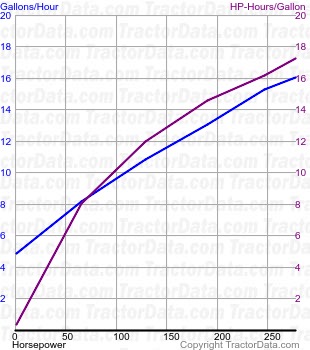

9350 fuel use from test 202
OCED Tractor Test 1707
Diesel 12-speed 4WD
April 16 - 23, 1996
Link: OCED Tractor Test 1707 file
PTO performance
Max power284.25 hp
212.0 kW
Fuel use15.0 gal/hour
56.8 l/hour
Power at rated engine speed276.98 hp
206.5 kW
Fuel use16.1 gal/hour
60.9 l/hour
Drawbar performance
Max power246.21 hp
183.6 kW
Fuel use15.8 gal/hour
59.8 l/hour
Gear 5 used for power test.
Max pull29,577 lbs
13416 kg
Gear 2 used for pull test.
