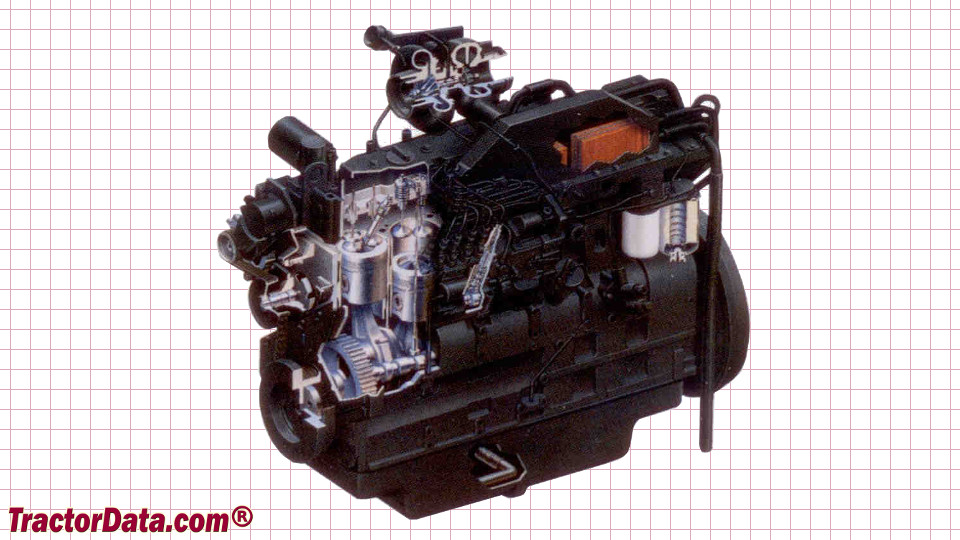

CaseIH 9330 - engine

CaseIH 9330 tractor photo
1996 - 1999   9300 Series
Four-wheel Drive (4WD) tractor
Previous model:CaseIH 9230
Series next:CaseIH 9350
Series back:CaseIH 9310
more CaseIH 9330 specifications...






Engine Detail:

 CDC 6TA
 turbocharged diesel
 6-cylinder
 liquid-cooled
 504.5 ci [8.3 L]
Bore/Stroke:4.49x5.31 inches [114 x 135 mm]
Power (gross):240 hp [179.0 kW]
Air cleaner:dual paper elements
Compression:16.5:1
Rated RPM:2200
Idle RPM:850-2310
Starter volts:12
Oil capacity:22.2 qts [21.0 L]
Oil change:250 h
Coolant capacity:29.5 qts [27.9 L]
