CaseIH 9280 Transmission


CaseIH 9280 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
9270
9280
335.0hp
375.0hp
Transmission options
12-speed full power shift
12-speed fully synchronized
Transmission
Typefull power shift
Gears12 forward and 3 reverse
Clutchhydraulic wet disc
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).
Speeds
With 24.5x32 tires.

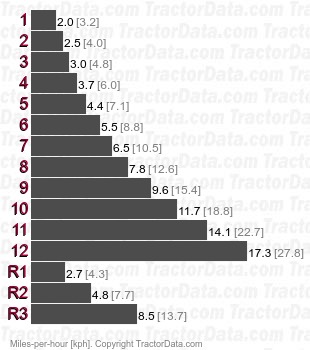

9280  full power shift speeds
Shift Pattern
CaseIH 9280 transmission controls
Transmission
TransmissionSyncroShift
Typefully synchronized
Gears12 forward and 3 reverse
Clutchhydraulic wet disc
Three gears (1-3) plus reverse (R) in four ranges (A-D). Synchronized shifting between gears and ranges.
Speeds
With 24.5x32 tires.

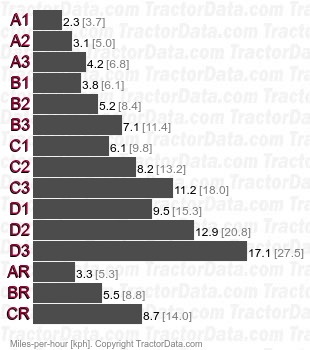

9280 SyncroShift fully synchronized speeds
Shift Pattern
CaseIH 9280 transmission controls
