CaseIH 9240 Tests


CaseIH 9240 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
9230
9240
9250
235.0hp
235.0hp
300.0hp
OCED Tractor Test 1650

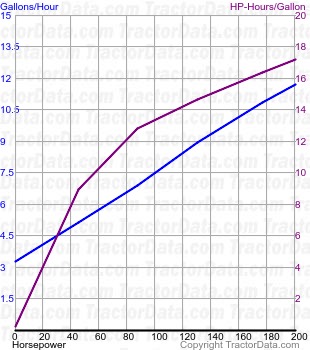

9240 fuel use from test 88
OCED Tractor Test 1650
Diesel 12-speed 4WD
June 5 - 14, 1991
Link: OCED Tractor Test 1650 file
PTO performance
Max power215.87 hp
161.0 kW
Fuel use11.8 gal/hour
44.7 l/hour
Power at rated engine speed200.53 hp
149.5 kW
Fuel use11.7 gal/hour
44.3 l/hour
Power at rated PTO speed212.08 hp
158.1 kW
Fuel use11.9 gal/hour
45.0 l/hour
Drawbar performance
Max power175.89 hp
131.2 kW
Fuel use11.7 gal/hour
44.3 l/hour
Gear 5 used for power test.
Max pull28,747 lbs
13039 kg
Gear 1 used for pull test.
