CaseIH 7250 Tests


CaseIH 7250 tractor photo
1994 - 1996
Magnum 7200 Series
Row-Crop tractor
Series map:
7240
7250
216.7hp
238.9hp
OCED Tractor Test 1712

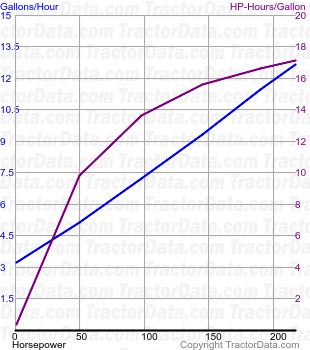

7250 fuel use from test 207
OCED Tractor Test 1712
Diesel 18-speed 4WD
May 7 - 13, 1996
Link: OCED Tractor Test 1712 file
PTO performance
Max power242.97 hp
181.2 kW
Fuel use13.2 gal/hour
50.0 l/hour
Power at rated engine speed216.90 hp
161.7 kW
Fuel use12.7 gal/hour
48.1 l/hour
Drawbar performance
Max power187.40 hp
139.7 kW
Fuel use12.7 gal/hour
48.1 l/hour
Gear 8 used for power test.
Max pull17776 lbs
8063 kg
Gear 6 used for pull test.
