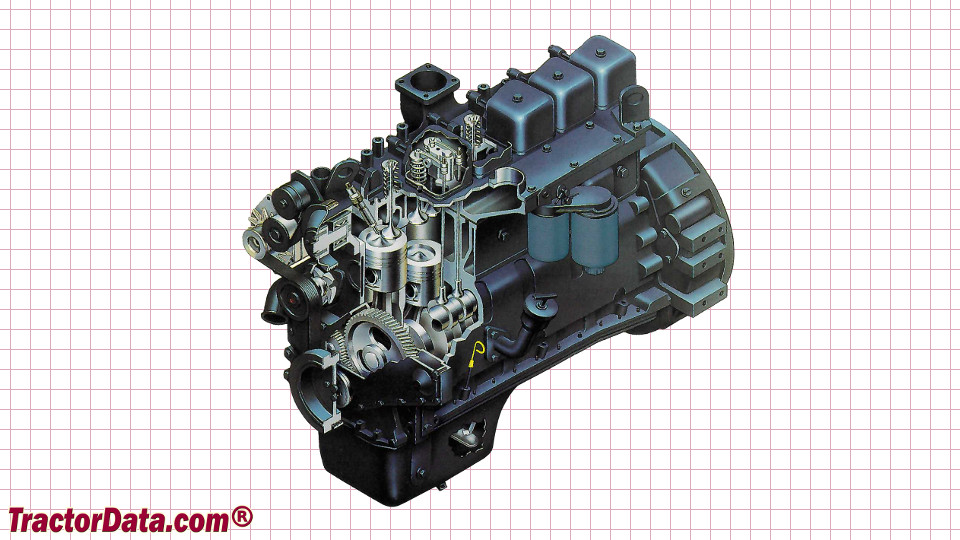

CaseIH 5130 Maxxum - engine

CaseIH 5130 Maxxum tractor photo
1990 - 1991   Maxxum Series
Utility tractor
Next model:CaseIH 5230
Series next:CaseIH 5140
Series back:CaseIH 5120
more CaseIH 5130 Maxxum specifications...






Engine Detail:

 CDC
 diesel
 6-cylinder
 liquid-cooled
 359 ci [5.9 L]
Bore/Stroke:4.02x4.72 inches [102 x 120 mm]
Power:99 hp [73.8 kW]
Air cleaner:dry
Rated RPM:2200
Idle RPM:850-2355
Starter volts:12
Oil change:250 h
Coolant change:250 h
