CaseIH 3394 Transmission


CaseIH 3394 tractor photo
1985 - 1987
Row-Crop tractor
Series map:
3294
3394
3594
197.0hp
180.0hp*
202.2hp*
*Estimated engine power for comparison only.
Transmissions overview
24-speed partial power shift
12-speed partial power shift
Transmission
Typepartial power shift
Gears24 forward and 3 reverse
Oil capacity133 qts
125.9 L
Four ranges with six power shift gears in each range.
Speeds
With 20.8x38 rear tires.
3394  partial power shift speeds
Shift Pattern

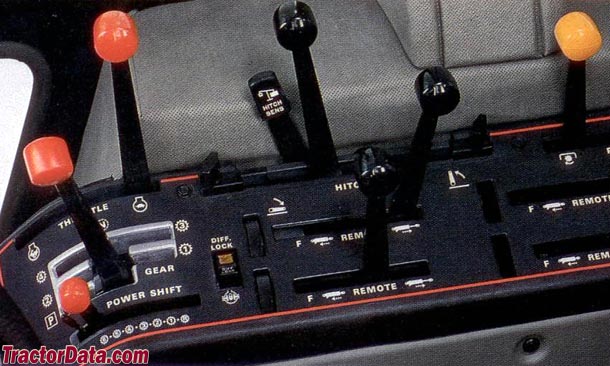

CaseIH 3394 transmission controls
Transmission
Typepartial power shift
Gears12 forward and 3 reverse
Oil capacity133 qts
125.9 L
Four ranges with three power shift gears in each range.
Speeds
With 20.8x38 rear tires.

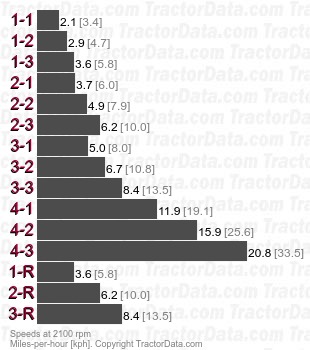

3394  partial power shift speeds
