Tractors > CaseIH > 3394

CaseIH 3394 Tests



CaseIH 3394 tractor photo
1985 - 1987
Row-Crop tractor
Series map:
3294
3394
3594
197.0hp
180.0hp*
202.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1583

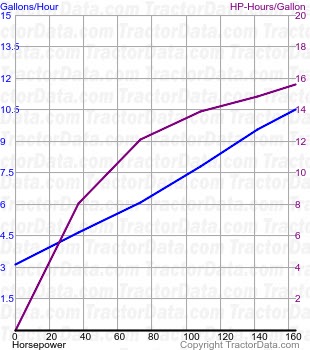

3394 fuel use from test 1583
Nebraska Tractor Test 1583
Diesel 24-speed 4WD
October 15 - 24, 1985
Link: Nebraska Tractor Test 1583 file
PTO performance
Power at rated engine speed162.86 hp
121.4 kW
Fuel use10.6 gal/hour
40.1 l/hour
Drawbar performance
Max power141.17 hp
105.3 kW
Fuel use10.4 gal/hour
39.4 l/hour
Gear 16 used for power test.
Max pull17421 lbs
7902 kg
Gear 1-4 used for pull test.
