Tractors > CaseIH > 2394

CaseIH 2394 - tests

CaseIH 2394 tractor photo
1984 - 1988
Previous model:J.I. Case 2394
Series next:CaseIH 2594
Series back:CaseIH 2294
more CaseIH 2394 specifications...

Note: the CaseIH model 2394 is the same as the J.I. Case 2394. The following data is from the 2394 listing.

Nebraska Tractor Test 1527:

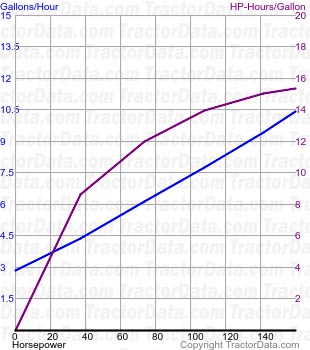

2394 fuel use from test 1527
Test Date:June 7 - 23, 1984
Type:Diesel 24-speed 2WD
PTO power (rated engine speed):162.15 hp [120.9 kW]
PTO fuel use (engine speed):10.5 gal/hour [39.7 l/hour]
Drawbar power (max):137.78 hp [102.7 kW]
Drawbar fuel use (max):10.3 gal/hour [39.0 l/hour]
Drawbar pull (max):15497 lbs [7029 kg]
Max pull gear:2-2
Test report:PDF file
