1984 - 1988

Row-Crop tractor

	2294 ↑
Series:	2294	→ 2394

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Note: the CaseIH model 2294 is the same as the J.I. Case 2294. The following data is from the 2294 listing.

Nebraska Tractor Test 1526

Nebraska Tractor Test 1526
Diesel 12 speed 2WD June 1 - 12, 1984 Link: Nebraska Tractor Test 1526 file

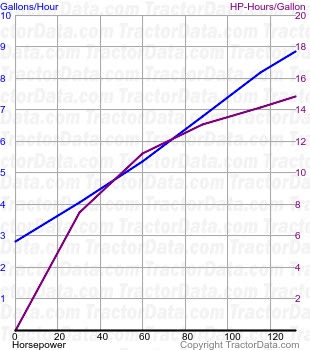

PTO performance
Power at rated engine speed:	131.97 hp 98.4 kW
Fuel use:	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power:	115.35 hp 86.0 kW
Fuel use:	8.8 gal/hour 33.3 l/hour
Gear 3-2 used for power test.
Max pull:	13,017 lbs 5904 kg
Gear 2-1 used for pull test.
