CaseIH 2130 Transmission


CaseIH 2130 tractor photo
1988 - 1993
2100 Series
Orchard/Vineyard tractor
Carraro built
Series map:
2120
2130
2140
33.1kw
38.9kw
45.6kw
Transmissions overview
8-speed partially synchronized
12-speed partially synchronized
Transmission
Typepartially synchronized
Gears8 forward and reverse
Clutch280mm dry disc
2WD Oil capacity38 qts
36.0 L
4WD Oil capacity40.2 qts
38.0 L
Four synchronized gears (1-4) in two ranges (I/II) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.
Speeds
With 13.6-28 rear tires. Reverse speeds are 15% slower than forward.
2130  partially synchronized speeds

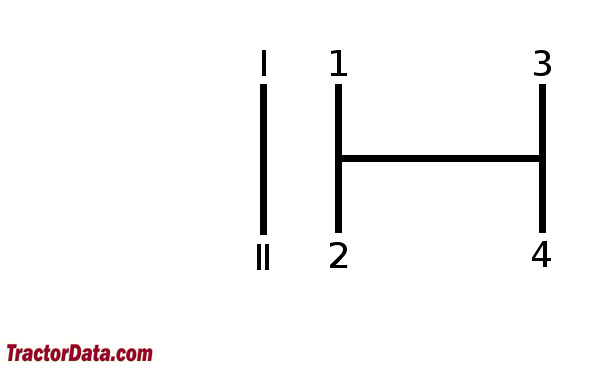

Shift Pattern
CaseIH 2130 transmission controls
Transmission
Typepartially synchronized
Gears12 forward and reverse
Clutch280mm dry disc
2WD Oil capacity38 qts
36.0 L
4WD Oil capacity40.2 qts
38.0 L
Four synchronized gears (1-4) in three ranges (I/II/III) with right-hand mechanical shuttle lever. Clutch must be used to shift direction or gear. Tractor must be stopped, and clutch used, to shift range.

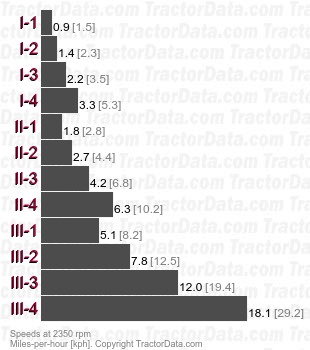

Speeds
With 13.6-28 rear tires. Reverse speeds are 15% slower than forward.
2130  partially synchronized speeds

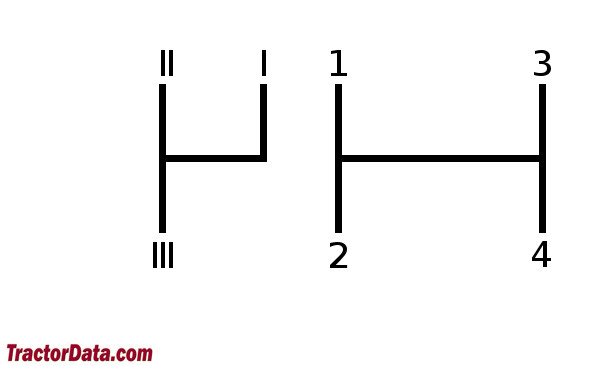

Shift Pattern
CaseIH 2130 transmission controls
Page information
Contact: Peter Easterlund
Updated on October 2, 2020
